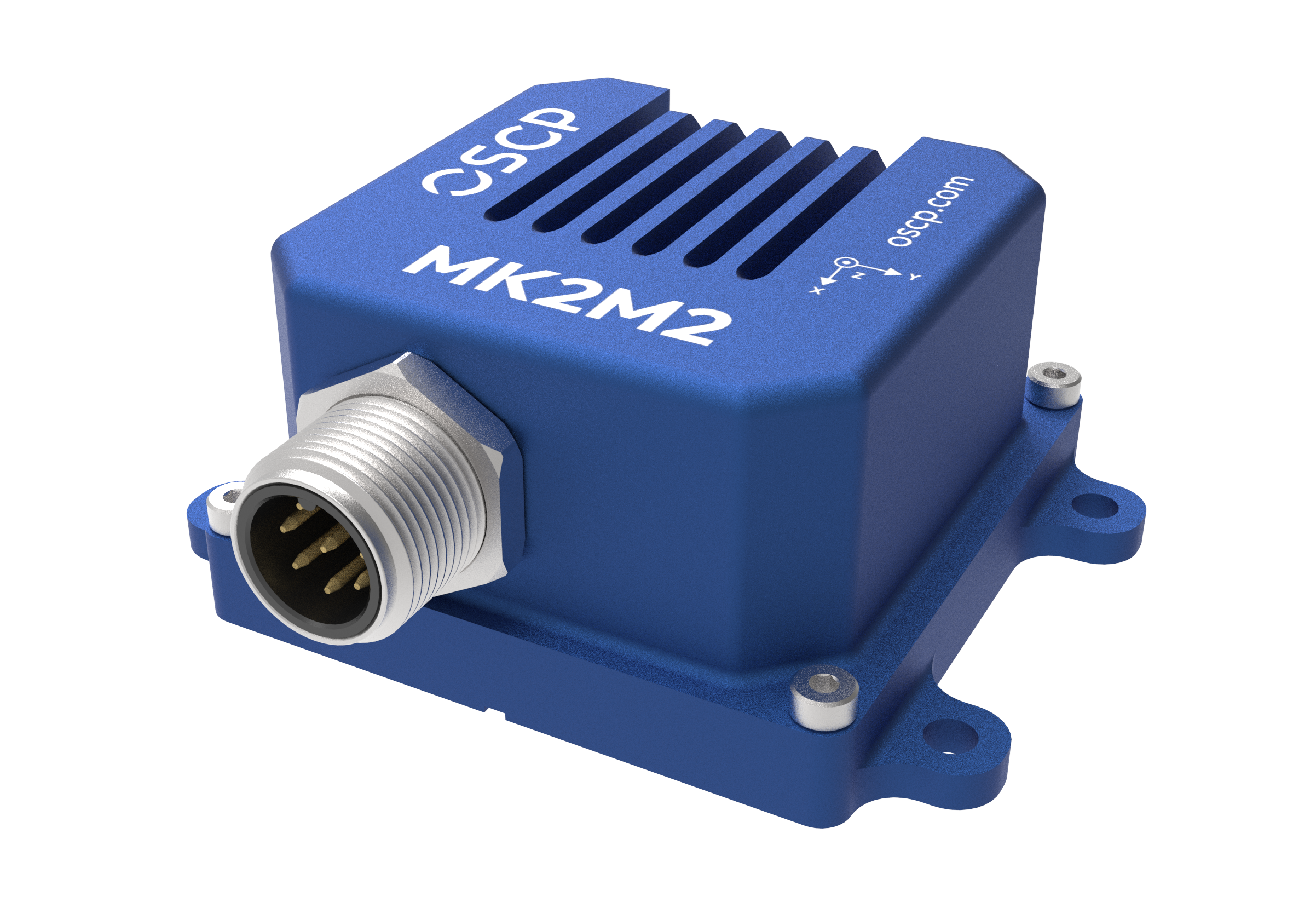

Our most compact 11 degrees of freedom (DoF) unit — a MEMS-based IMU combining three gyroscope axes, three accelerometer axes, three TMR magnetometer axes and two inclinometer axes in a compact enclosure. The gyroscope design improves fault tolerance and compensates for sensor drift over time, holding angular rate accuracy in demanding or harsh conditions.

MK2M2

Applications

Small drones · Robotics · Autonomous rail · Geospatial mapping


Features

  • Low-drift gyroscopes

    0.5 °/hr in-run bias stability

  • Low-drift accelerometers

    < 15 μg in-run bias stability

  • Interface

    RS-422 or CAN-FD

  • Power

    1.2 W · +12 to +34 VDC

  • Dimensions

    40 × 40 × 25 mm1 · 75 g

  • Environment

    −40 °C to +85 °C · IP67


Functional Block Diagram

Functional Block Diagram


Specifications

Indicative figures only

Values below are at typical operating conditions. Test conditions, min/max limits over temperature, scale factor and non-linearity errors are given in the full specification sheet — contact us at info@oscp.com to request it.

Gyroscopes

Dynamic Range (Selectable)
±125 to ±4000 °/sec
In-Run Bias Stability
0.5 to < 1.0 °/hr
Angle Random Walk
0.06 °/√hr

Accelerometers

Dynamic Range (Selectable)
±2, ±4, ±8, ±16 g
In-Run Bias Stability
< 15 µg
Velocity Random Walk
0.008 m/sec/√hr

Magnetometers & Inclinometers

Magnetometer Dynamic Range
±20 G
Inclinometer Dynamic Range (Selectable)
±0.5, ±1, ±2, ±3 g

Communications

Protocol
RS-422 or CAN-FD
Output Data Rate
up to 500 Hz

Electrical

Operating Voltage
12 to 34 V
Power Consumption
1.2 W

Mechanical

Operating Temperature
−40 to +85 °C
Rating
IP67
Dimensions
40 × 40 × 25 mm1
Weight
75 g

Important

All specifications are no longer guaranteed if the unit is opened.


Certifications & Environmental Testing

The MK2M2 has been validated by an independent ISO/IEC 17025 accredited laboratory.

Ingress Protection

Rating
IP67 — IEC 60529:2019

Electromagnetic Compatibility

Emissions
EN 55032 Class A · FCC Part 15 · ICES-003
Immunity
EN 55035 / CISPR 35

Vibration & Shock

Sine sweep
20–2000 Hz up to 8 g peak, all three axes
Shock
Half-sine up to 40 g peak, 11 ms, all three axes

About vibration and shock

Units were tested unpowered and verified functional afterwards. These figures describe what the unit survives, not its performance during exposure.


Mechanical Drawings

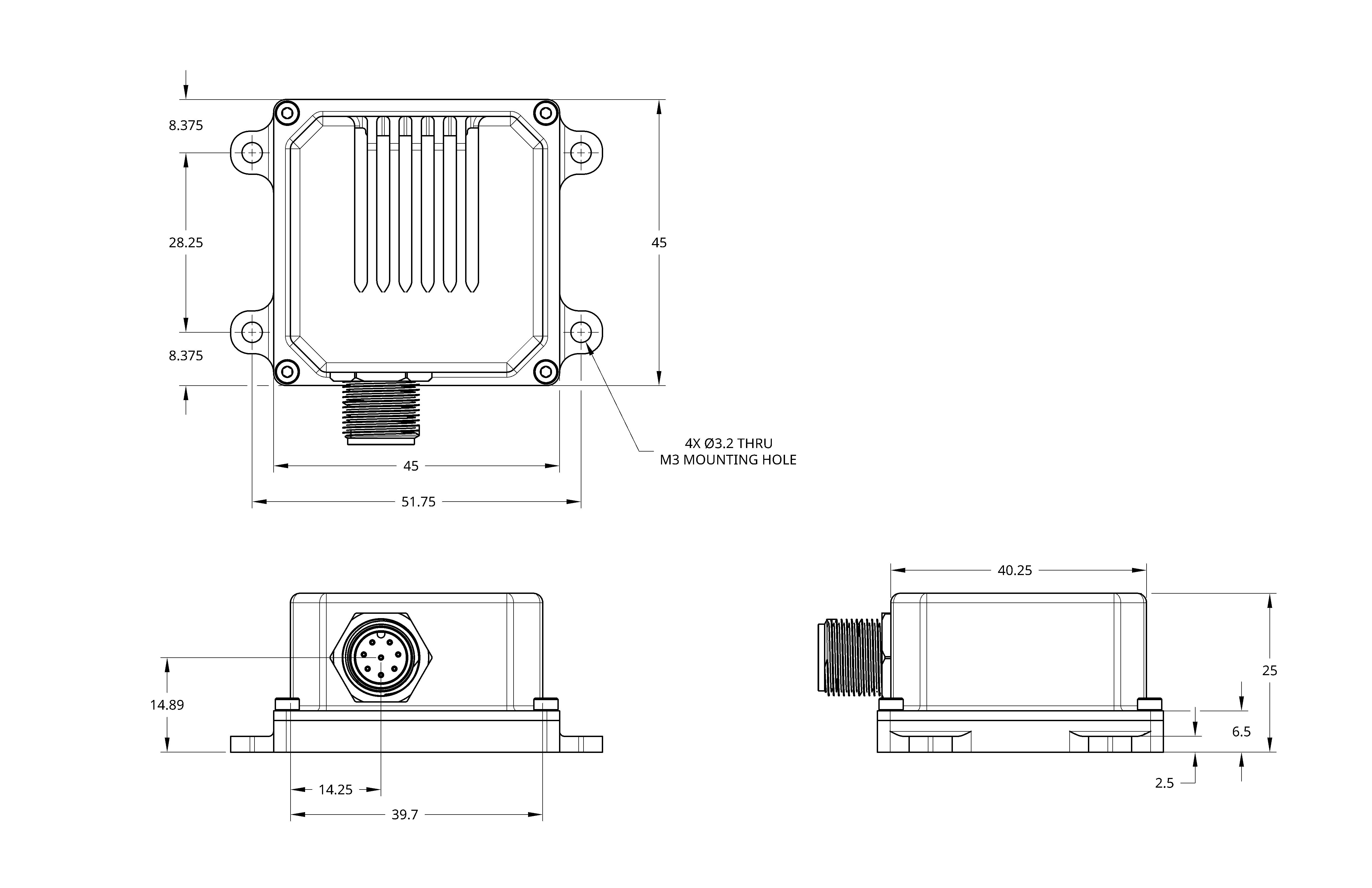

The enclosure features M3 mounting holes, with mechanical drawings showing the mounting through-holes and side views indicating the connector location. All units are given in mm.

Mechanical Drawings
Previous M2 Revision

For reference, a previous enclosure version was manufactured with M2 mounting holes. This earlier version had the same overall dimensions, with a slightly different distance between the centers of the smaller mounting holes. This version is no longer in production, but the corresponding mechanical drawings are available on request.


Marking

The top of the package is marked with a decal indicating the orientation axes of the unit.

Marking

  1. The standard version of the IMU has a footprint of 40 x 40 x 25 mm. To accommodate mounting through-holes, the enclosure includes a base that slightly enlarges the footprint to 45 x 58.5 x 25 mm.
