Our highest-performance 11 degrees of freedom (DoF) unit — an IMU built around a navigation-grade optical gyroscope on the heading axis, paired with three MEMS gyroscope axes, three accelerometer axes, three TMR magnetometer axes and two inclinometer axes. The optical architecture significantly enhances long-term heading stability and drift performance, with strong resilience to thermal drift, vibration and EMI.

MK2Z

Applications

Autonomous heavy machinery · Precision agriculture · Construction · Aerospace · Defense · UAVs · Marine

Features

  • Navigation-grade optical gyroscope

    On the heading axis (z) · 0.005 °/hr bias

  • Low-drift MEMS gyroscopes

    0.5 °/hr in-run bias stability

  • Low-drift accelerometers

    < 15 μg in-run bias stability

  • Interface

    RS-422 or CAN-FD

  • Power

    4.5 W typical · +12 to +34 VDC

  • Dimensions

    83 × 86.5 × 65 mm1 · 475 g

  • Environment

    −40 °C to +70 °C · IP67 in progress

Functional Block Diagram

Functional Block Diagram

Specifications

Indicative figures only

Values below are at typical operating conditions. Test conditions, min/max limits over temperature, scale factor and non-linearity errors are given in the full specification sheet — contact us at info@oscp.com to request it.

Optical Gyroscope (z-axis)

Dynamic Range
±250 °/sec
In-Run Bias Stability
0.005 to < 0.01 °/hr
Angle Random Walk
0.02 to 0.03 °/√hr

Automatic z-axis source switching

The z-axis gyroscope output is sourced from the optical gyroscope while the measured rotation rate stays below 250 °/sec. Above that threshold the output switches automatically to the MEMS gyroscope, maintaining accuracy up to selected range. No configuration or host-side handling is required.

MEMS Gyroscopes

Dynamic Range (Factory Option)
±125 to ±4000 °/sec
In-Run Bias Stability
0.5 to < 1.0 °/hr
Angle Random Walk
0.06 °/√hr

Accelerometers

Dynamic Range (Factory Option)
±2, ±4, ±8, ±16 g
In-Run Bias Stability
< 15 µg
Velocity Random Walk
0.008 m/sec/√hr

Magnetometers & Inclinometers

Magnetometer Dynamic Range
±20 G
Inclinometer Dynamic Range (Selectable)
±0.5, ±1, ±2, ±3 g

Communications

Protocol
RS-422 or CAN-FD
Output Data Rate
up to 500 Hz

Electrical

Operating Voltage
12 to 34 V
Power Consumption
4.5 W typical · 7.5 W max

Mechanical

Operating Temperature
−40 to +70 °C
Rating
IP67 in progress
Dimensions
83 × 86.5 × 65 mm1
Weight
475 g

Important

All specifications are no longer guaranteed if the unit is opened.

Mechanical Drawings

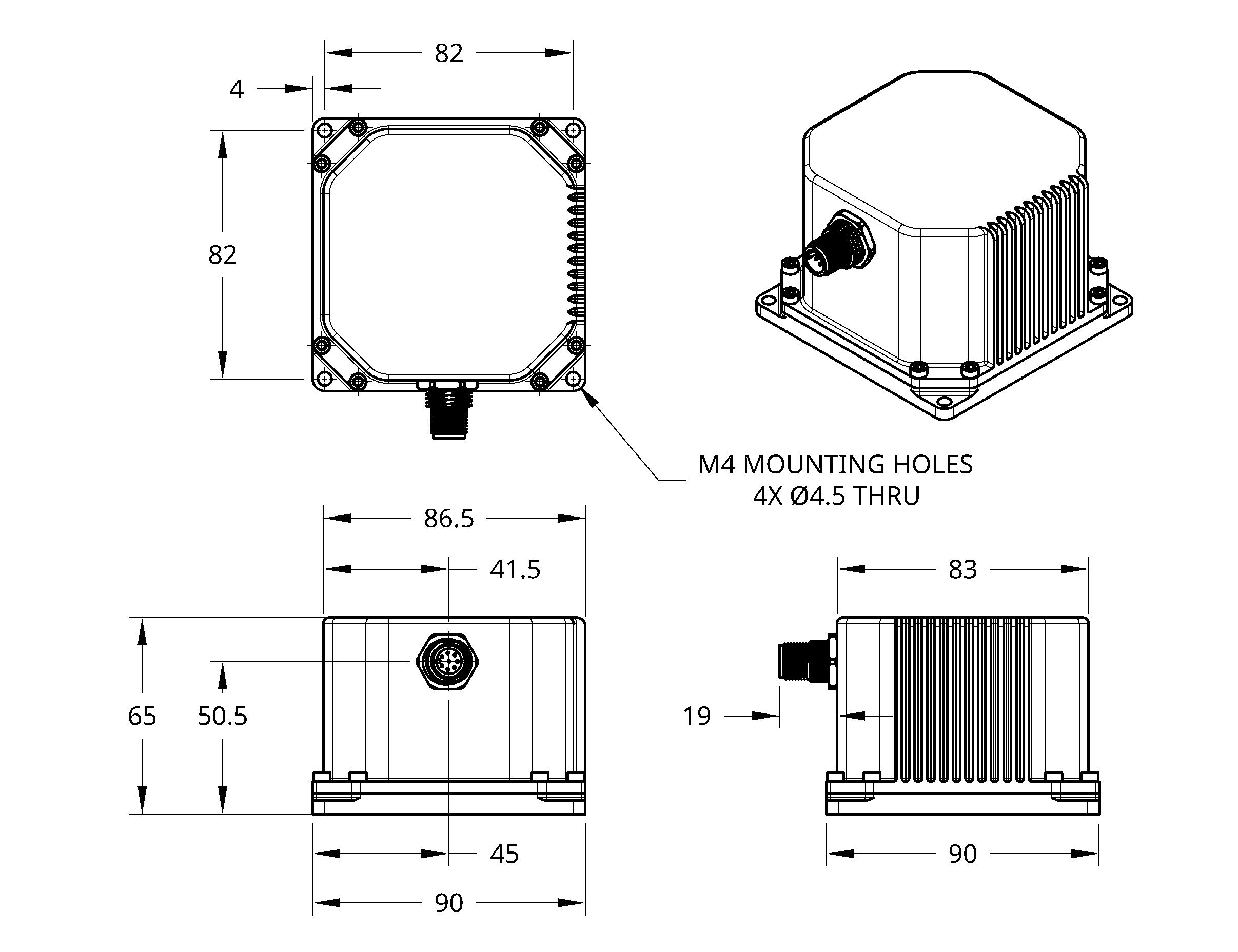

Mechanical drawings of the enclosure with the mounting through-holes, and side views showing the connector location. All units are given in mm.

Mechanical Drawings

Marking

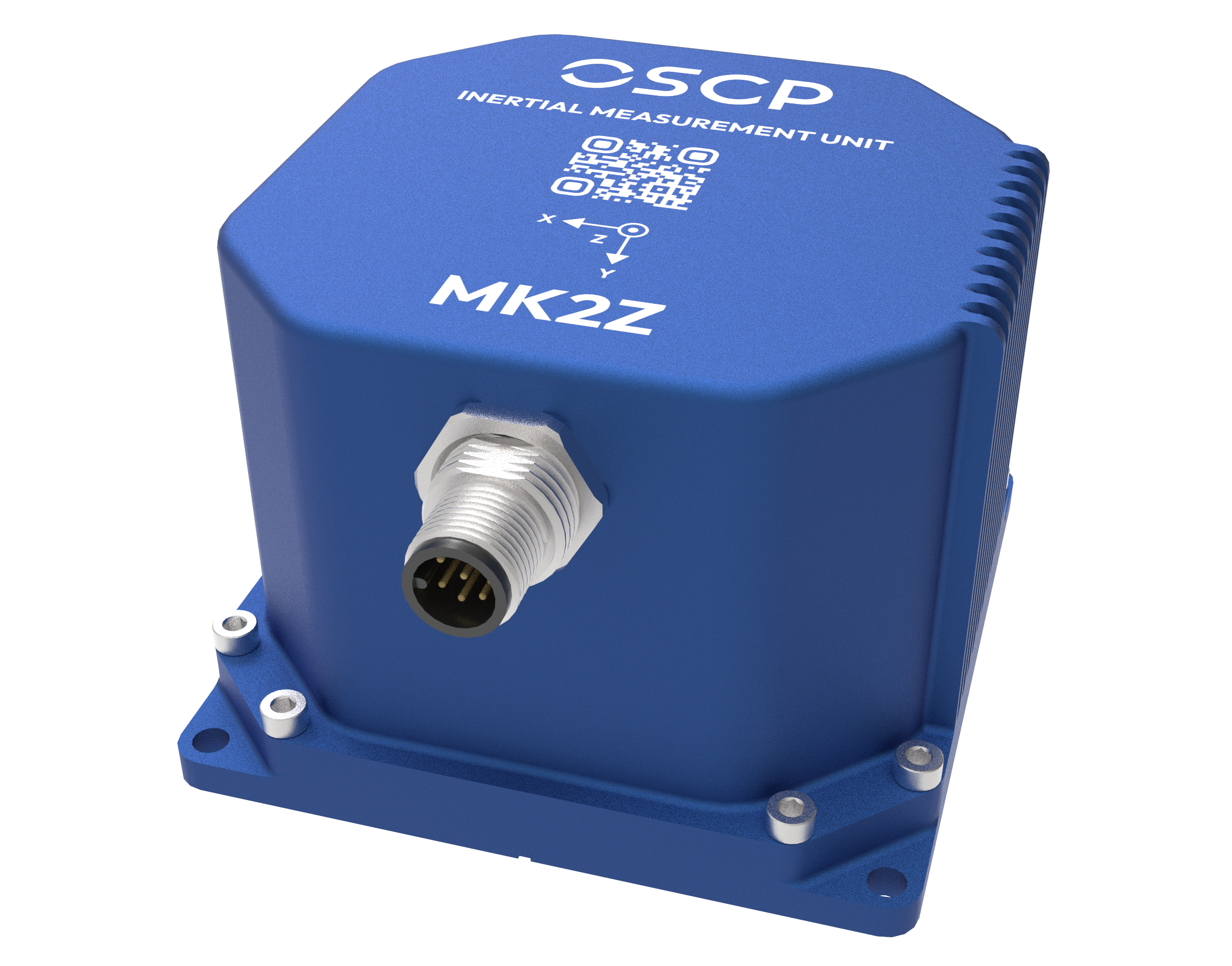

The top of the package is marked with a decal indicating the orientation axes of the unit.

Marking

  1. The width is slightly enlarged by the addition of a base to accommodate the mounting through-holes at the bottom of the IMU, for a total dimension of 90 × 90 × 65 mm. ↩↩
